Foreship hull form yields substantial fuel savings

Company Profiles, Energy, Environment, Shipbuilding and Shipyards, Technical, Technology — By on February 5, 2015 at 12:41 PM

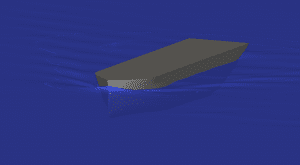

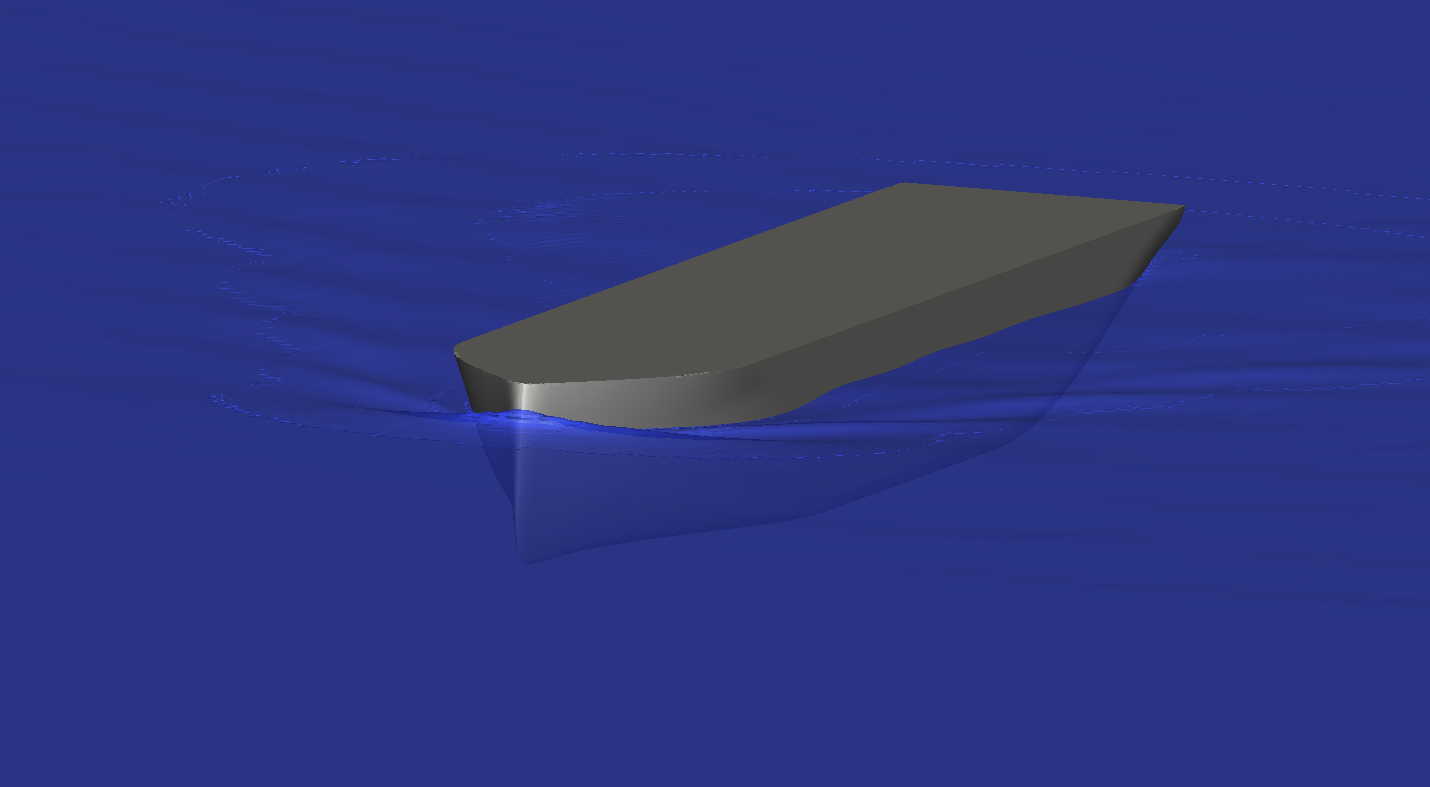

Smooth wave profile along the hull

Smooth wave profile along the hull

Hull form optimization and hydrodynamic design from Foreship are at the core of major fuel consumption savings to be achieved by a new generation coastal general cargo ship.

Finnish owner Meriaura Group signed for two 4, 700DWT Ice Class 1A VG EcoCoasterTMgeneral cargo newbuilds at Dutch yard Royal Bodewes in mid-January, with the first due for delivery at the end of July, 2016. Hull form and machinery optimization are expected to almost halve fuel consumption compared to conventional dry cargo vessels of similar type and size, in turn making a significant impact on fuel emissions.

Foreship worked with Meriaura and Aker Arctic Technology at the EcoCoaster’s concept stage, in a project that also envisages the ship using either MGO or the biofuel ‘EcoFuel’, to meet and even exceed maritime environmental regulations.

“Altogether, 45 hull alternatives were considered, of varying lengths and hydrostatics, with the aim of minimizing resistance while achieving small wave formation and good wake field for the propeller, ” says Risto Ajanko, Senior Specialist, Hydrodynamics, Foreship Ltd. “The main dimensions of the EcoCoasterTM were optimized, achieving the best ratio between capacity and fuel consumption.”

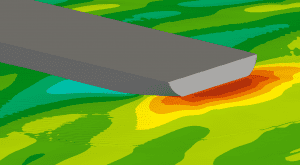

Wave behind transom is small for the developed hull form without any diverging waves

Wave behind transom is small for the developed hull form without any diverging waves

Using Foreship’s advanced in-house Computational Fluid Dynamics tools, designers also reached the best compromise for performance in open water and in the ice channel, with Aker Arctic advising and model testing to enhance performance in ice. In addition, analysis focused on optimizing the smooth wave profile along the hull.

The hull form includes a long and narrow bow that will achieve lower resistance in ice channels, while flare angles minimize additional resistance in waves. The aft shape features a narrow gondola to enhance wake field for the propeller.

The EcoCoaster’s dual fuel propulsion will be delivered by an ABC 8DZC medium speed main engine which will be suitable for biofuel and MGO. VG-Shipping (part of Meriaura) operates its own biofuel refinery in Uusikaupunki. The owner’s goal is for EcoCoasters to make up at least half of its fleet (currently 20 vessels) within five years. A larger EcoCoaster design is also under development.

About Foreship
Foreship Ltd. is an independent, privately owned naval architect and marine engineering company with more than 60 professionals. We are the leading cruise ship newbuilding consultant and conversion specialist and have participated in most of the recent large newbuildings and challenging conversion projects. In addition, we have significant expertise in ferries, RoRo vessels and other cargo ships. Our hull forms and CFD knowledge are world-renowned, providing significant cost savings for several ship owners.  Foreship™ services cover the full scope of shipbuilding; from feasibility to delivery and beyond.
